VIDEW 7 Inch Video Intercom System 2 Wires Tuya Smart Doorbell with Camera and 2 Monitors Door Phone Entry System for Villa Home

JD-V6R07M01A-T/C/V/2W


√1/2 indoor monitor & 2/1 outdoor camera as a kit: 7 inch TFT color screen and high-definition camera
√Cloud storage and memory card supported. monitor maximum support 32GB external TF memory card(Not include)
√Coming with IR Sensor, IR LEDs will turn On/off Automatically.
√IP65 waterproof design,work stable in rainy,cloudy,cold and snow day.
√6 Ring tones Optional. You can set different ring tones and volume level as you need.
√"TuyaSmart" App supported. Easily connect the monitoring to more than one smartphone in less than two minutes. Quite simple operation! (Device can be shared to 6 family members in Tuya APP)
√Multiple-devices Connection. The doorbell can be connected to more Monitors for different needs. And it can be connected to electric locks to remotely unlock the door.

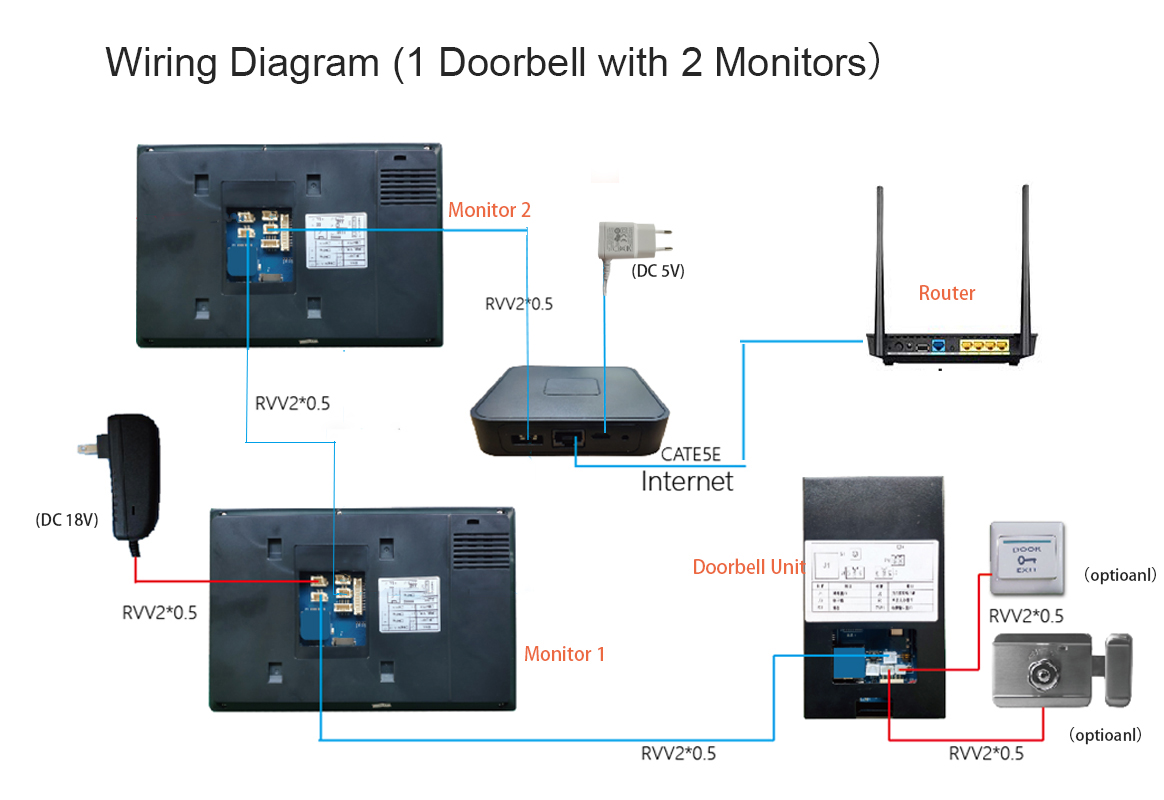

√2 Wires-Cable Connection. You can buy extra longer wire to extend the distance according to your need.
√2 external power adapter (The DC18V and DC5V) included for base installation.(18V power adapter for indoor monitor and outdoor unit powered by indoor monitor)
√ 2 connecting cable included for testing. Entension cable should be purchased separately for different needs.

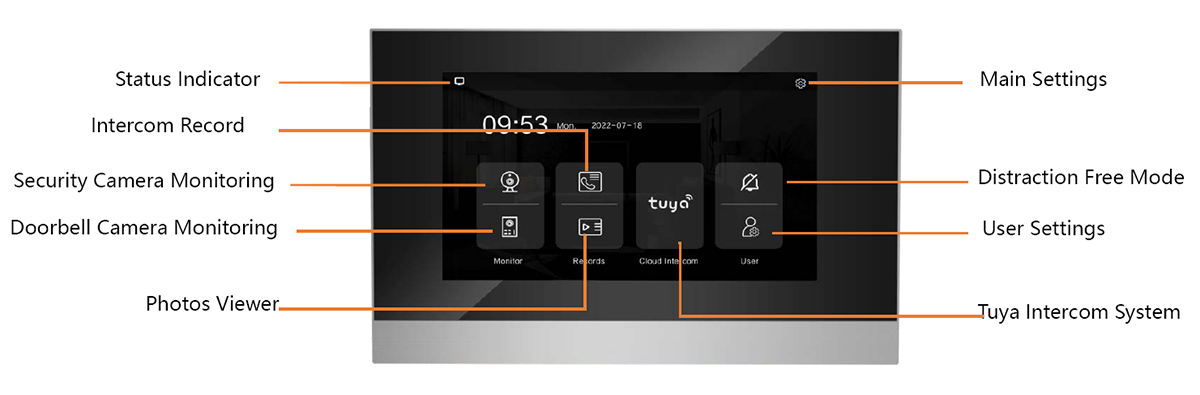

Indoor Monitor Screen
Model Name: JD-V6R07M01A-T/C/V/2
Operation System: Linux
Color: Black
LCD Screen: 7 inch TFT-LCD
Resolution: 1024x600
Ringtone: 6 Chord
Power Supply: External DC18V Power Adapter (included)
SD/TF Storage: Max 32G SD card (not included)
Working Voltage/Currency: DC15V~24V/350mA
Working Temperature:﹣20℃- 55℃
Wiring: 2 Wires Cable
Installation: Wall mounting
Dimension: 218*138*25mm(L/W/H) /8.6*5.4*1inch
Material: Metal
System: Support 4*Indoor Monitor + 2*Outdoor Doorbell+2* Electric Lock
